PLC Splitter

Product description

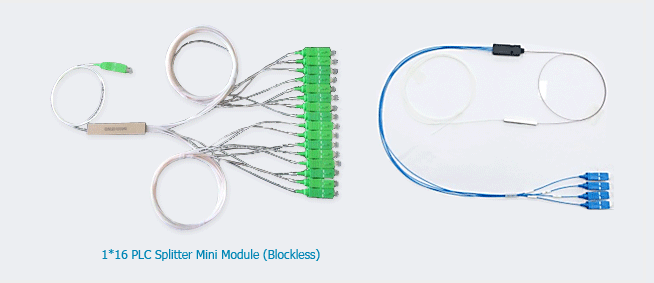

PLC Splitter MIni Modules
The PLC Splitters is branching devices that is used to distribute optical signals to multiple locations for processing.
PLC Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using
silica optical waveguide technology.
Fiber Optical PLC Splitter Features
1. Low Insertion Loss
2. Low Return Loss
3. Low PDL
4. High Uniformity
Fiber Optical PLC Splitter Application
1. Optical Communication System
2. CATV Networks
3. FTTH
4. Passive Optical Networks(PON)
Fiber Optical PLC Splitter Specifications
Parameter unit 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64 2 x 4 2 x 8 2 x 16 2 x 32
Wavelength nm 1260 to 1650 1260 to 1650
Insertion Loss(IL)* dB 7.6 10.5 13.9 17.2 20.6 7.8 11.2 14.5 18.0
Return Loss (RL) dB ≥55 ≥55
PLD(dB)* dB <0.3 <0.3 <0.4
Uniformity* dB 0.8 1.0 1.5 1.8 1.8 1.2 1.5 2.0 2.5
Directivity dB ≥55 ≥55
Operation Temp. dB -40 ~ +85℃ -40 ~ +85℃

* : Without connector

Fiber Optic PLC Splitter Mechanical Specifications
Configuration 1 x 4, 1 x 8 2 x 4, 2 x 8 1 x 16, 1 x 32,
2 x 16, 2 x 32
1x64
Package Material Stainless Steel
Dimension(㎜)
(L x W x H)
40 x 4 x 4 50 x 5 x 4 60 x 7 x 4 58 x 12 x 4
order Package Customize
Ordering Information
  • -. Out-Connector: FC/PC, SC/PC, LC/PC, FC/APC, SC/APC
  • -. Out-Length: 1m ribbon, 0.5m fan-out
  • -. Out type: Ribbon only, Fan-out in-Connector
  • -. In-length: 1m, 1.5m
  • -. In-Fiber: 0.9mm

Optical Splitter
* Customized Specification is available upon request.
“Production according to customers specifications and packing requirements”
